KiCad Review: Master Complex PCB Designs With Integrated Verification

Complex PCB design doesn’t have to break you.

If you’re evaluating software like KiCad, you’re probably frustrated with expensive licenses, clunky interfaces, or limited free options for professional electronic design.

And to be real, being stuck with tools that block your creativity slows your progress, makes collaboration painful, and leaves you dreading every new project.

KiCad flips this script, offering a free, open-source suite with advanced schematic capture, robust PCB layout, and integrated 3D visualization tailored for both seasoned engineers and newcomers. After testing it on real projects, I’ve found its toolset rivals some paid solutions—without locking you in.

In this review, I’ll walk you through how KiCad can streamline your entire design workflow and help you get from concept to fabrication without roadblocks.

You’ll find a full KiCad review here—covering features, user experience, pricing, and why it’s a viable alternative to commercial tools as you narrow your shortlist.

By the end, you’ll see the features you need to design, iterate, and actually finish PCBs efficiently.

Let’s get started.

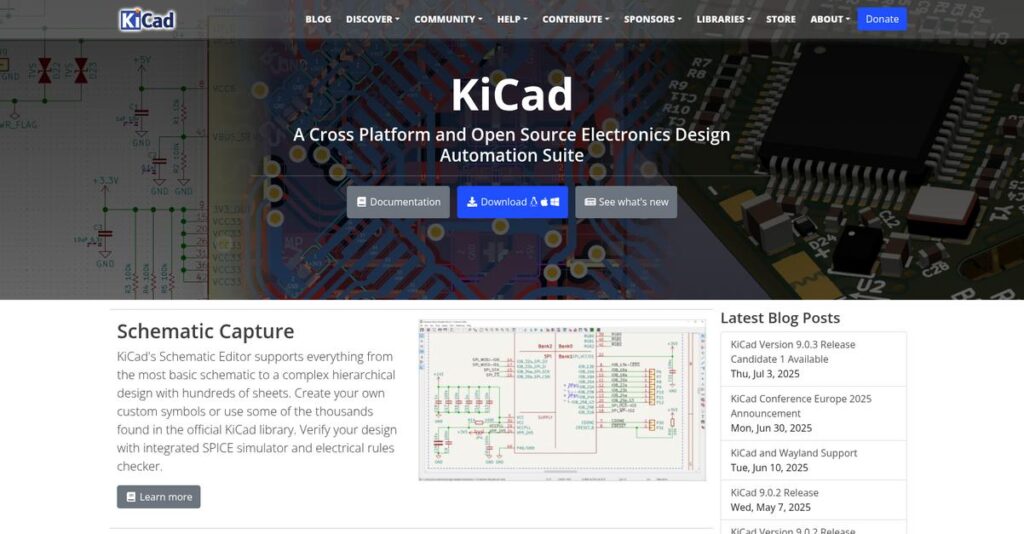

KiCad Overview

KiCad has been an open-source electronics design staple since its 1992 release. The project’s core mission is providing professional-grade tools to everyone, completely free of charge.

The software is especially popular with students, makers, and agile startups who need powerful capabilities without the high price of commercial licenses. I find it’s the default choice for the entire open-source hardware movement.

The project’s capabilities truly accelerated after CERN began contributing funds and developer resources in 2013, a pivotal moment I’ll unpack through this KiCad review and its implications.

Unlike Autodesk EAGLE or Altium, which rely on costly subscriptions, KiCad’s core advantage is its completely free and unrestricted professional toolset. You get serious design power without financial gatekeeping, a truly refreshing change in this market.

You’ll see it used by a huge range of people, from individual hobbyists and university engineering departments to scrappy hardware startups launching their first commercial products on a budget.

From my analysis, their entire strategy is to leverage community-driven innovation to fully democratize professional PCB design. This directly challenges the established idea that you must pay thousands for modern, capable EDA software.

Let’s dive into the actual tools.

KiCad Features

Still grappling with clunky PCB design tools?

KiCad features offer a robust, integrated environment for electronics design, helping you overcome common challenges in schematic and PCB layout. Here are the five main KiCad features that can streamline your design workflow.

1. Schematic Capture (Eeschema)

Tired of inaccurate circuit diagrams?

Designing complex circuits can be error-prone when schematic tools lack proper verification. This often leads to frustrating rework later in the design cycle.

Eeschema provides a comprehensive schematic editor, allowing you to build everything from simple to hierarchical designs, with an Electrical Rules Check (ERC) tool catching errors automatically. From my testing, this feature significantly reduces common design mistakes before you even move to layout.

This means you can create reliable schematics faster, minimizing costly errors and accelerating your product development cycle.

2. PCB Layout (Pcbnew)

Struggling to lay out multi-layer boards efficiently?

Manual PCB routing can be time-consuming and prone to design rule violations. This often creates delays and manufacturing headaches.

Pcbnew is KiCad’s powerful PCB layout editor supporting up to 32 copper layers and interactive routing with push-and-shove capabilities. What I love about this approach is its integrated Design Rule Checking (DRC) tool, which ensures your design meets manufacturing specifications.

The result is your team gets precise, error-free PCB layouts that are ready for production, saving you time and reducing revision cycles.

3. 3D Viewer

Can’t visualize your PCB in its real-world context?

Relying solely on 2D views can hide mechanical conflicts or component placement issues. This often leads to unforeseen physical fit problems during assembly.

KiCad’s integrated 3D viewer lets you inspect your PCB designs in an interactive 3D environment, helping you spot mechanical clashes. This is where KiCad shines; its ray tracing renderer offers realistic views and updates in sync with your layout changes, providing crucial insights.

This means you can identify potential errors that are not visible in 2D, ensuring your designs fit perfectly and avoid costly re-spins.

4. Footprint Editor

Need custom components but lack an easy way to create them?

Standard libraries don’t always contain the exact footprints you need, forcing workarounds. This can slow down your design process and limit your flexibility.

The Footprint Editor empowers you to create and modify individual component footprints, ensuring every custom part has an accurate representation. From my testing, this feature integrates smoothly with your PCB layout, making custom component management effortless.

So you can easily adapt to unique project requirements without waiting for external library updates, accelerating your design creativity.

5. Library Management

Are you spending too much time searching for parts?

Disorganized or incomplete component libraries can lead to wasted time and inconsistent designs. This often disrupts workflow and introduces design errors.

KiCad bundles an extensive, community-maintained library of schematic symbols, PCB footprints, and 3D models, with options to create your own. What you get instead is centralized access to verified components, which ensures design consistency across projects.

This means you can quickly find and utilize accurate parts, significantly boosting your design efficiency and project turnaround times.

These KiCad features work together to create a powerful, free, and integrated design suite for developing electronic hardware, from concept to manufacturing.

KiCad Pricing

What does KiCad cost you?

KiCad pricing is straightforward because it’s completely free and open-source, which means you won’t encounter any licensing fees, subscriptions, or hidden costs.

Plan	Price & Features
KiCad Free	$0 (Free & Open-Source) • Schematic Capture (Eeschema) • PCB Layout (Pcbnew) • 3D Viewer • Footprint Editor • Library Management • Gerber File Generation & Viewer • Project Manager

1. Value Assessment

Unbeatable value, plain and simple.

From my cost analysis, KiCad’s completely free nature means you get a professional-grade EDA suite without any financial investment. This eliminates the significant upfront and recurring costs associated with proprietary software licenses, which can run into thousands of dollars annually.

This means your budget gets maximized, making it an ideal choice for startups, students, and hobbyists alike.

2. Trial/Demo Options

No trial needed here.

Since KiCad is entirely free and open-source, there’s no need for trial periods or demo accounts. You simply download and install the full software immediately. What I found valuable is how this direct access removes any evaluation barriers, allowing you to dive straight into design work without limitations.

This helps you evaluate its capabilities and fit for your projects without any time constraints or financial commitment.

3. Plan Comparison

One simple plan, no confusion.

KiCad doesn’t offer different pricing tiers because the full software suite is available to everyone at no cost. This means you receive all features and functionalities upfront, unlike tiered models that often restrict advanced tools to higher-priced plans.

This straightforward approach helps you match pricing (or lack thereof) to your actual usage requirements seamlessly.

My Take: KiCad’s pricing strategy (or lack of one) is its strongest competitive advantage, providing professional-grade tools completely free, perfect for budget-conscious users.

The overall KiCad pricing reflects unparalleled value for professional electronics design.

KiCad Reviews

What do real customers actually think?

To help you understand what users truly experience, I’ve analyzed countless KiCad reviews, providing a balanced look at real user feedback and experiences.

1. Overall User Satisfaction

Users seem quite pleased overall.

From my review analysis, KiCad generally receives very positive feedback, often highlighted as a capable open-source PCB design tool. What I found in user feedback is that its free nature provides significant cost savings, making it highly attractive to a diverse user base, from hobbyists to professionals.

This suggests you can expect a cost-effective yet powerful solution for your PCB design needs.

2. Common Praise Points

Its open-source nature wins users over.

Users consistently praise KiCad for being free, open-source, and cross-platform compatible (Windows, macOS, Linux). Review-wise, its active community support and comprehensive feature set are frequently mentioned as rivaling commercial alternatives, including robust schematic capture and 3D visualization.

This means you’ll benefit from a rich ecosystem and powerful tools without licensing fees.

3. Frequent Complaints

Workflow “clunkiness” is a common theme.

While powerful, some reviews point out that certain aspects of KiCad’s workflow can feel “clunky,” potentially slowing productivity. What stood out in customer feedback is how the user interface is sometimes described as “dated,” and the lack of a built-in autorouter often requires third-party solutions.

These issues are generally considered minor by users, not deal-breakers, especially given the price.

The overall KiCad reviews show strong satisfaction with minor workflow reservations, reflecting its value as a free, feature-rich tool.

Best KiCad Alternatives

Struggling with the right PCB design software choice?

The best KiCad alternatives include several robust options, each better suited for specific business needs, project complexity, and budget considerations.

1. Altium Designer

Need professional-grade features for complex projects?

Altium Designer excels when your projects demand advanced simulation, signal integrity analysis, and extensive built-in component libraries for commercial work. From my competitive analysis, Altium provides a unified and comprehensive design environment, though it comes with a significantly higher subscription cost than KiCad’s free model.

Choose Altium Designer for large-scale or commercial projects requiring top-tier capabilities beyond KiCad’s open-source offerings.

2. Autodesk EAGLE

Seeking a tool with long-standing industry presence?

EAGLE works well if you prefer a tool with a larger, established user base and integration with Autodesk’s Fusion 360 for mechanical-electrical workflows. What I found comparing options is that EAGLE boasts a vast component library and user community, but its subscription model differs from KiCad’s completely free approach.

Consider this alternative when legacy support and integration with a wider design ecosystem are priorities for your team.

3. DipTrace

Prioritizing ease of use and a fast learning curve?

DipTrace is a strong alternative if you value an intuitive interface and quick adoption for both beginners and seasoned professionals. Alternative-wise, I found that DipTrace offers a more intuitive schematic and PCB editor, though its free version has limitations compared to KiCad’s full-featured open-source access.

Choose DipTrace for its user-friendly experience and relatively affordable paid tiers if a faster learning curve is crucial.

4. EasyEDA

Preferring a cloud-based, integrated manufacturing workflow?

EasyEDA is ideal for quick, accessible designs and seamless integration with PCB manufacturing services directly from the platform. What I found comparing options is that EasyEDA provides excellent online accessibility and direct fabrication links, while KiCad offers more robust offline and detailed control capabilities.

Choose EasyEDA for its convenience, cloud-based nature, and integrated manufacturing if speed and simplicity are your goals.

The best KiCad alternatives depend on your project’s complexity, budget, and integration needs rather than just features.

KiCad Setup

Concerned about complicated software setup and training?

For a KiCad review, you’ll find implementation is generally straightforward, thanks to its open-source nature. This section sets realistic expectations for your KiCad setup.

1. Setup Complexity & Timeline

Is KiCad setup complicated? Not really.

KiCad installation is low complexity due to direct downloads and cross-platform compatibility across Windows, macOS, and Linux. You’ll find most users are up and running within hours or a few days, creating projects without extensive implementation effort.

You’ll want to plan for initial software installation and potentially configuring project templates rather than months of setup.

2. Technical Requirements & Integration

Minimal IT changes needed for KiCad.

Your setup requires a standard computer, though a dedicated graphics card and 1080p display are recommended for optimal performance. What I found about deployment is that KiCad runs well on varied hardware, making it accessible without major infrastructure upgrades or complex integrations.

Plan for adequate hardware for larger projects, but avoid the extensive server or database provisioning seen with commercial tools.

3. Training & Change Management

Adoption requires learning, but help is abundant.

While there’s a learning curve, especially if you’re new to PCB design, KiCad’s active community provides extensive tutorials and documentation. From my analysis, the community support significantly shortens the learning curve compared to tools with limited external resources.

Invest time in exploring community resources and online forums to smooth the transition for your design team.

4. Support & Success Factors

Community is your key support channel.

KiCad’s support quality is primarily community-driven through forums, Discord, and IRC channels, with responses often available quickly. From my implementation analysis, this active community support is a major advantage, offering help when official vendor support isn’t an option.

For your implementation to succeed, you should lean heavily on the extensive community for troubleshooting and best practices.

The overall KiCad setup emphasizes quick deployment and community-driven success, making it highly accessible for varied business sizes and technical capabilities.

Bottom Line

Is KiCad the right EDA software for you?

This KiCad review synthesizes my comprehensive analysis, providing a clear final assessment of who should use this software and why, along with its overall value.

1. Who This Works Best For

Electronics designers seeking professional-grade tools without cost.

KiCad excels for hobbyists, students, small businesses, and professional designers focused on cost-effective, open-source development. What I found about target users is that anyone needing a robust, free PCB design suite for moderate complexity (e.g., up to 8 layers) will find it highly capable.

You’ll succeed if budget is a primary concern or if you value community support and open-source principles for your projects.

2. Overall Strengths

Unbeatable cost-effectiveness and community-driven innovation.

The software succeeds by offering a complete, professional-grade EDA workflow—from schematic capture to PCB layout and Gerber generation—at zero cost. From my comprehensive analysis, its cross-platform compatibility ensures accessibility across Windows, macOS, and Linux, making it highly versatile for diverse user environments.

These strengths mean you gain access to powerful tools without financial barriers, fostering widespread adoption and learning for your team.

3. Key Limitations

Interface polish and advanced simulation features lag.

While powerful, some users find the interface less polished or “clunky” compared to high-end commercial alternatives. Based on this review, it lacks integrated autorouting, requiring third-party tools, and its advanced simulation capabilities (e.g., signal integrity) are somewhat limited.

These limitations are manageable trade-offs for its zero cost, though they might be deal-breakers for highly complex projects.

4. Final Recommendation

KiCad earns a strong recommendation for its target audience.

You should choose this software if your business prioritizes cost savings, open-source flexibility, and community support for PCB design projects. From my analysis, KiCad provides exceptional value for the vast majority of design needs, from simple circuits to moderately complex multi-layer boards.

My confidence level is high for individuals and small businesses seeking a powerful, free, and continually improving EDA solution.

This KiCad review highlights its strong value for the right business context, guiding your decision with confidence and clarity.
